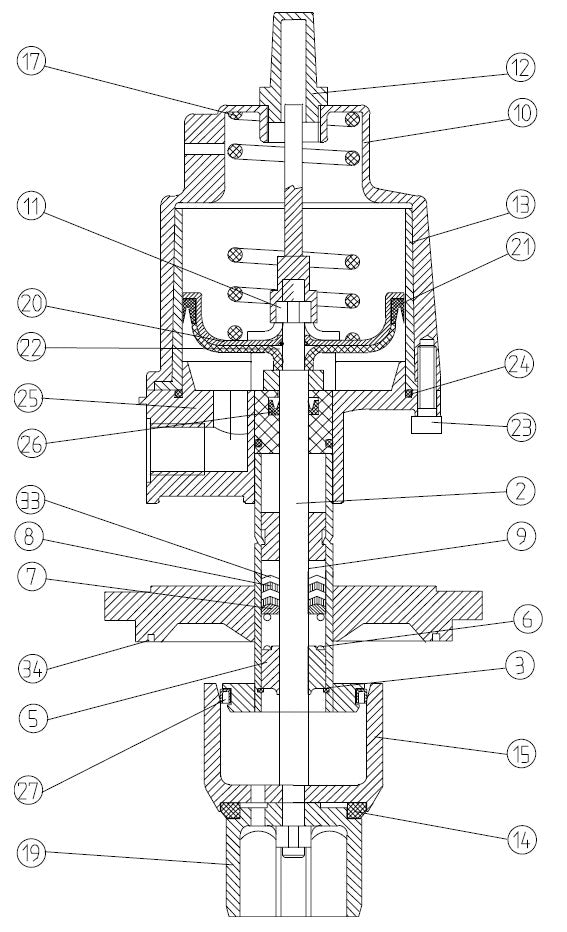

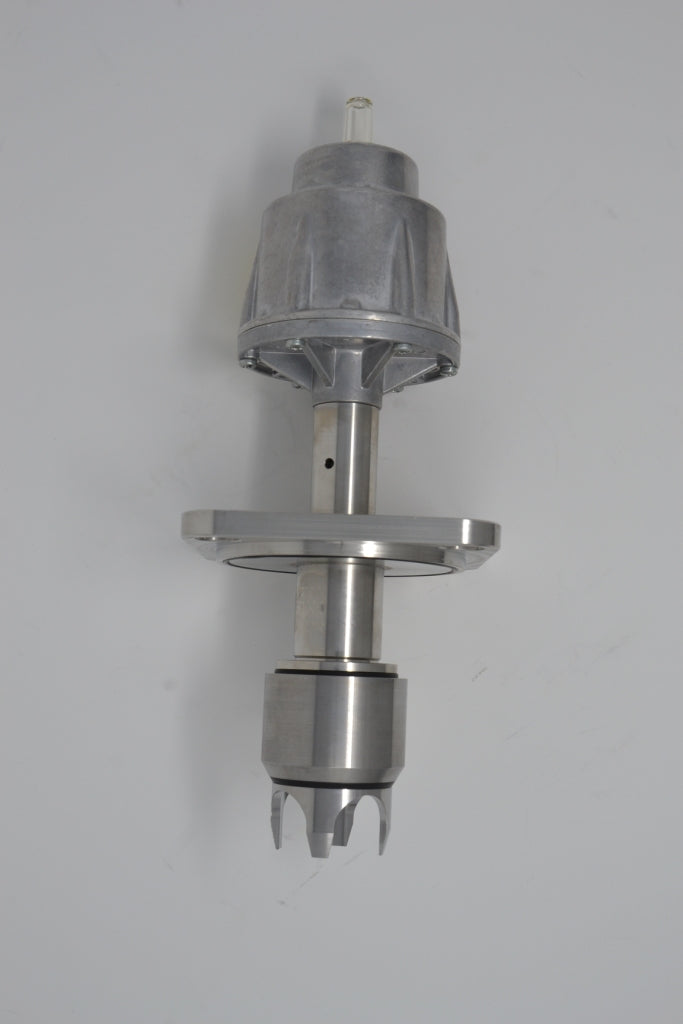

Seat Valve for Media Block DN50-70 E1
Upper part media valve
- nominal size: 50mm
- drive: 70mm
- pressure released - normally closed
- art-no 130106573
- 434.50-1-4
accessories:
| description | article-no |
|---|---|
| Optical Position Indicator | 130104953 |

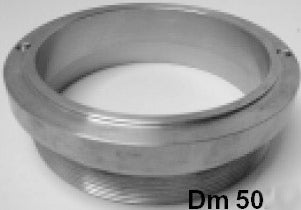

| Seat for Valve | 249005143 |
| Seal Set for Valve | 330101018 |
| Spindle | 330106533 |

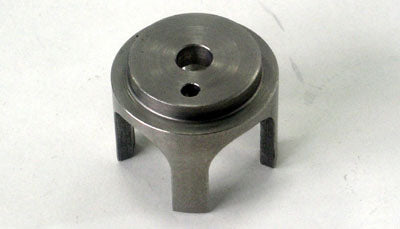

| Control Cone | 330106534 |

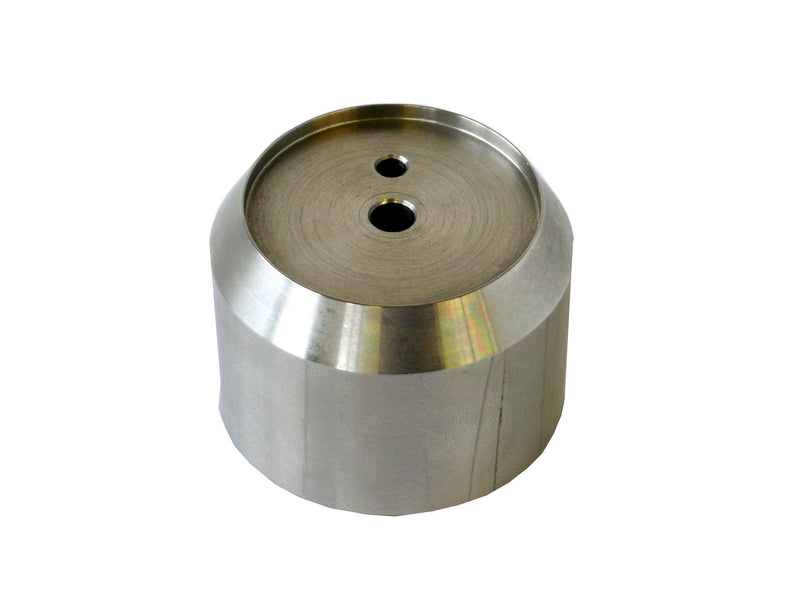

| Press.relief Cyl. | 330106535 |

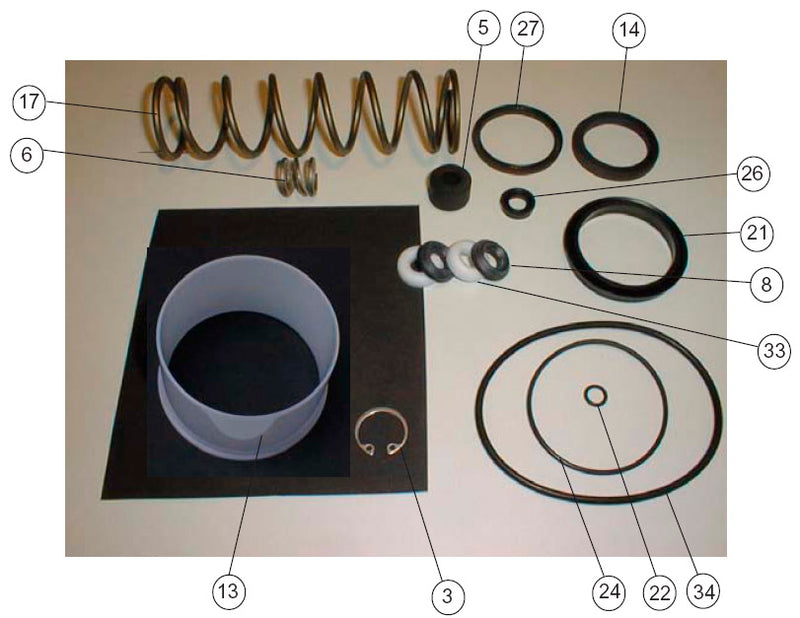

seal set includes:
| pos | description | qty | article-no |
|---|---|---|---|
| 03 | Circlip | 1 pc | 160013851 |
| 05 | Guide Bushing | 1 pc | 249005122 |
| 06 | Spring | 1 pc | 160015410 |
| 08 | Chevron | 2 pc | 160001551 |
| 14 | Seat Seal 40x52x5 | 1 pc | 249005104 |
| 17 | Spring | 1 pc | 160015414 |
| 27 | Seal Ring Spring Balanced | 1 pc | 249005114 |
| 33 | Chevron | 3 pc | 160001552 |
| 34 | O-Ring | 1 pc | 160005331 |
| 99 | Piston Act. Seal Set | 1 pc | 330101102 |
